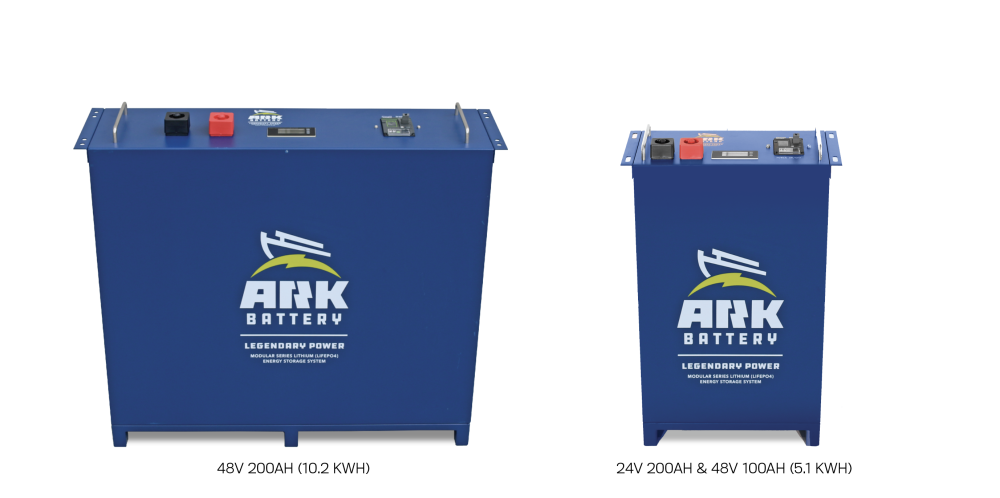

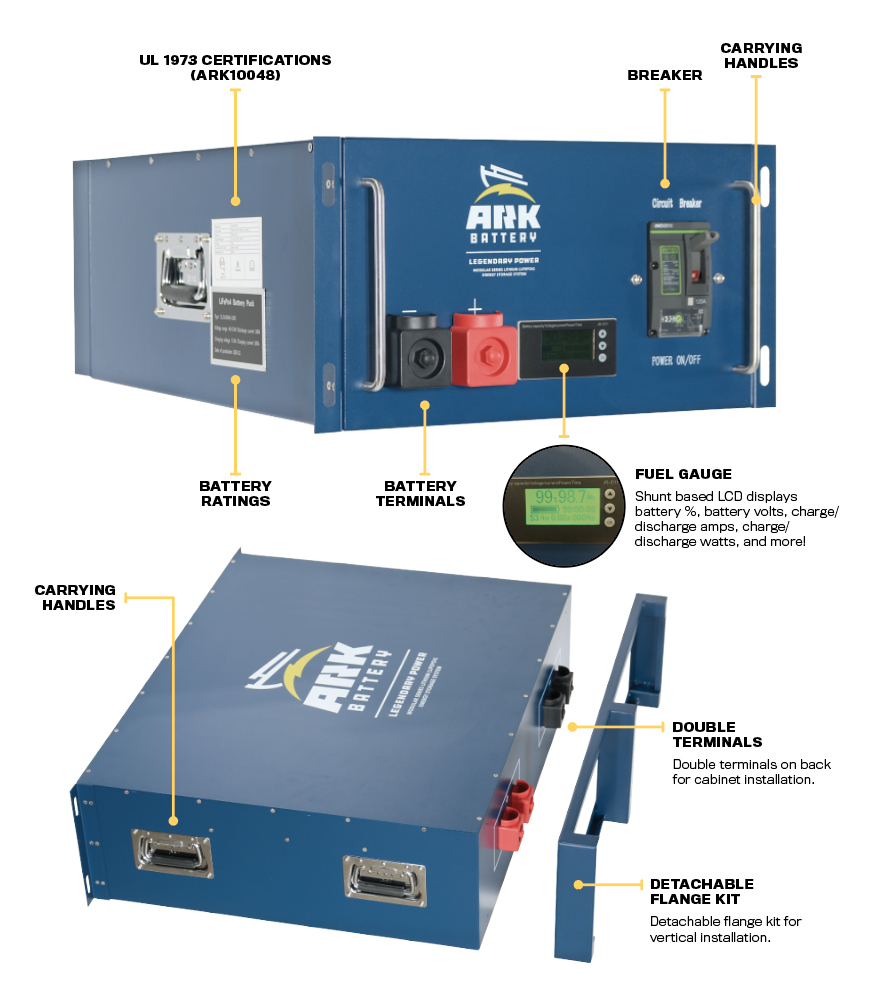

THE ARK BATTERY FAMILY

ARK Battery Family

Swipe right on mobile to view the full table, or click here.

ARK 512100 ARK 512200 ARK 256200
MSRP $2,900 $5,450 $2,970
Nominal Battery Voltage 48 48 24
Actual Voltage 51.2 51.2 25.6
Amp Hours 100 200 200
KWH 5.1 10.2 5.1
LCD Display Yes Yes Yes
Max Continuous Charge/Discharge Amps 100 140 140
Breaker Size (Amps) 125 160 160
Minimum Temperature 32ºF 32ºF 32ºF
Maximum Temperature 115ºF 115ºF 115ºF
Maximum Charge Volts 57.6 57.6 28.8
Recommended Charge Volts 57.2 57.2 28.6
Float Volts 54.4 54.4 27.2
BMS Protected Yes Yes Yes
Cell Chemistry LiFe PO4 LiFe PO4 LiFe PO4
Cell Format Prismatic Prismatic Prismatic
Certifications UL 1642 & UL 1973 UN 38.3 UL 1642 UN 38.2 UL 1642 UN 38.3
Warranty 10 year limited 10 year limited 10 year limited

Warranty: NEW! Every ARK Battery now comes with a 10 year limited warranty.
All ARK Battery products qualify for ITC tax credits when coupled with solar panels or wind turbines.

ARK BATTERY FLEX RACKING

FLEX RACKING
ARK Battery Flex Racking is laser-formed from 3/16 and 1/4” steel and supports battery stacks up to seven high.

MODULAR DESIGN!
Modular design! Flex racking supports adding additional ARK Batteries to your bank down the road. The assembly hardware is included with each battery.

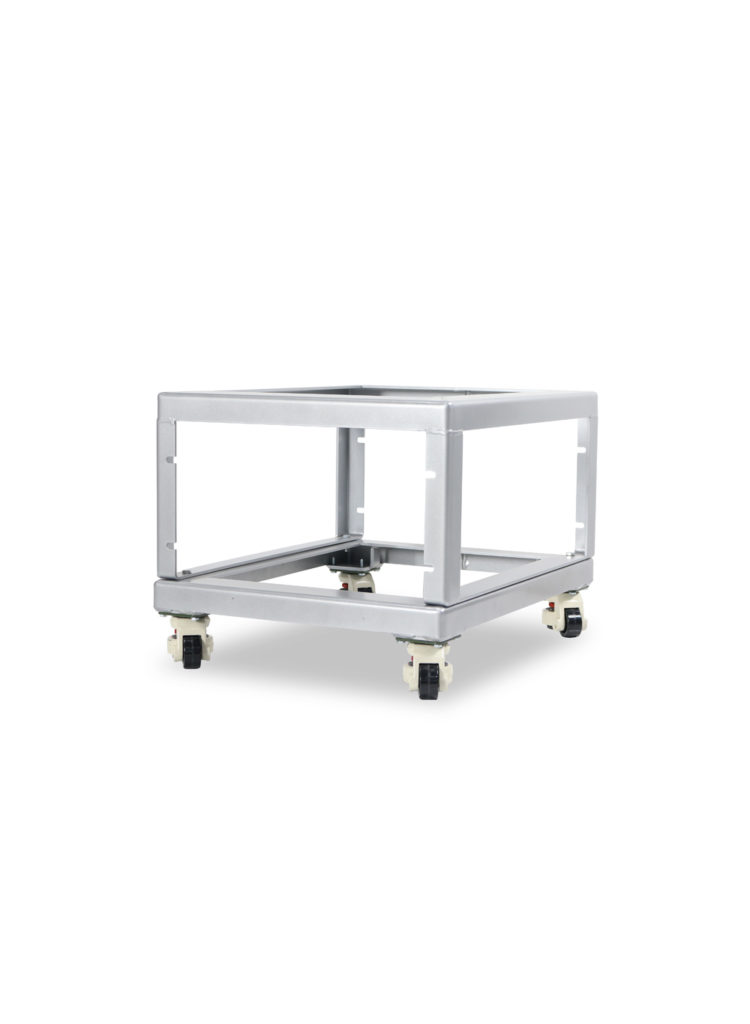

base

BASE

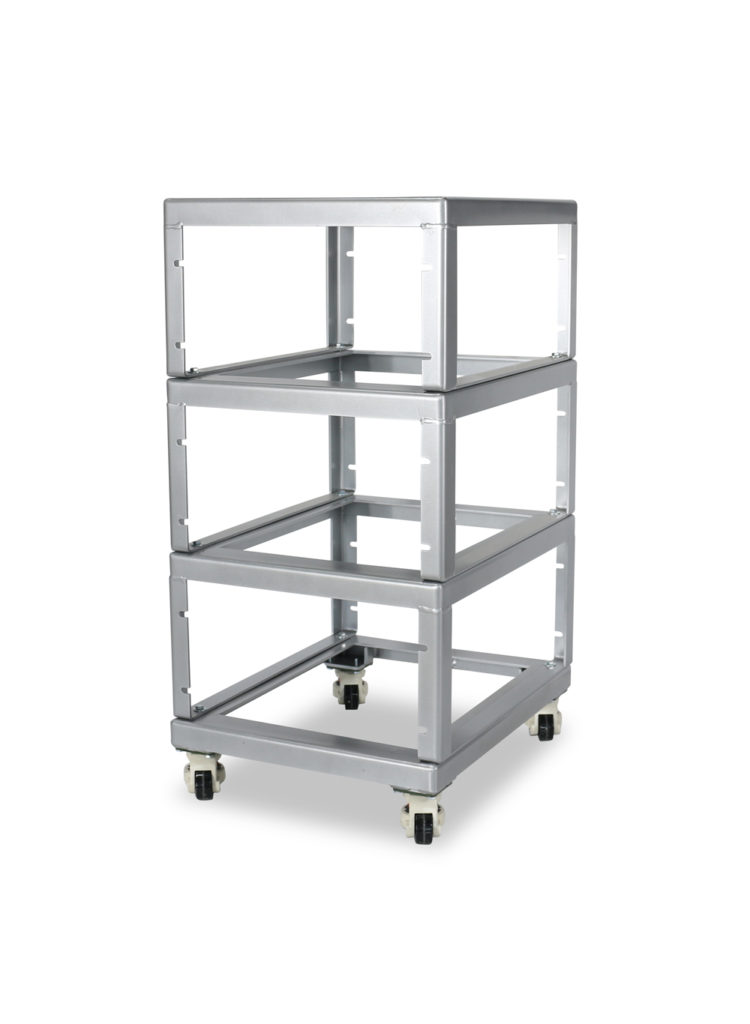

stacking

STACKING

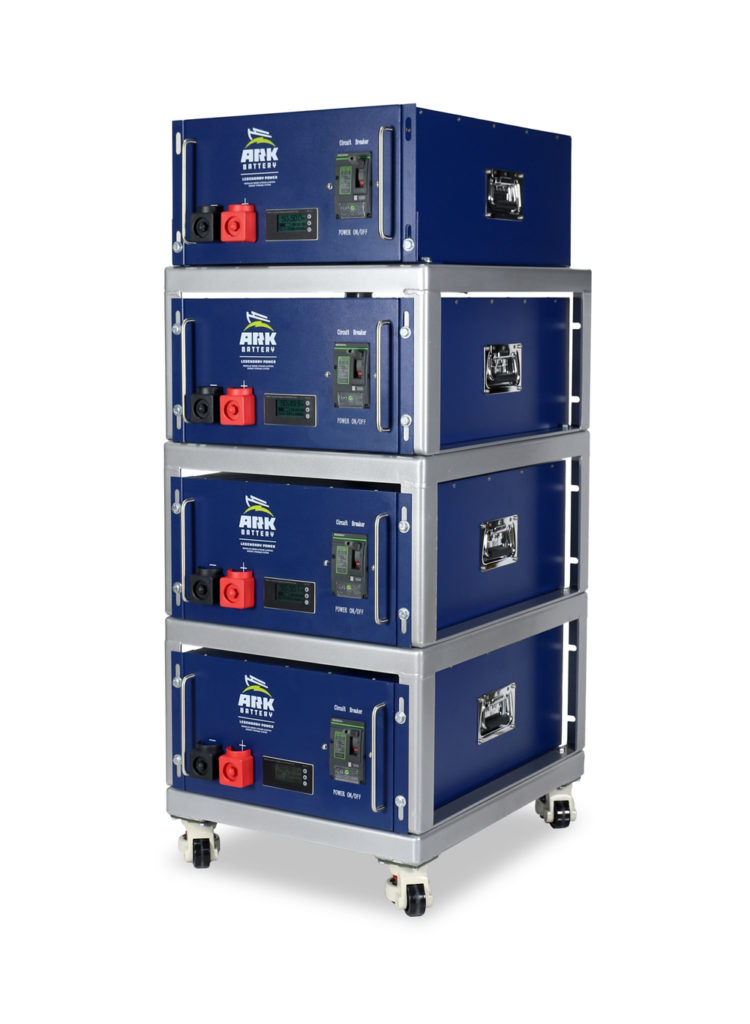

racking with batteries

RACKING WITH BATTERIES

double duty busbars

ARK Battery Double Duty Busbars are the perfect solution for paralleling multiple batteries in the same bank. In many cases, this eliminates the need for a separate, external busbar block or combiner.

busbars ark battery

Double Duty Busbars are made with layer copper. The ends are tinned giving them a smooth finish and resistance to corrosion. The individual layers allow flexibility and movement while still providing the conductivity benefits of copper.

A protective heat shrink insulates each busbar. Available in red and black for easy color-coding. Choose from two lengths.

195BUS

9.5 Inches center to center on holes

Use this model when installing ARK Batteries in the upright position

Spec Sheet

112BUS

12 Inches center to center on holes

Use this model when installing ARK Batteries in ARK Flex Racking

Spec Sheet

TAKE A LOOK

IMPACTIV BALANCING

Every ARK Battery is equipped with a special balancing system to ensure that all cells are charged and discharged equally. This serves the same purpose as ‘equalizing’ does for a lead-acid battery. While LiFePO4 batteries may not be equalized externally, it is critical that all cells within maintain the same voltage. An ‘imbalanced’ battery will result in nuisance BMS shut-offs, lower capacity and a drastically reduced cycle life.

Most batteries in today’s market come with a small balancing system known as passive balancing. In passive balancing, a set of resistors begin to dissipate (burn off) power from any cell that has an individual voltage higher than 3.6V. This dissipation typically occurs at 50-100 ma (5% to 10% of 1 amp). We have found this balancing method to be ineffective to meet the stringent requirements of cell balancing. In short, it is too slow as well as inefficient.

IMPACTIV balancing, used in all ARK Batteries channels extra power from high-volt cells to low-volt cells, and deploys additional dissipative consumption should a cell reach critically high voltage.

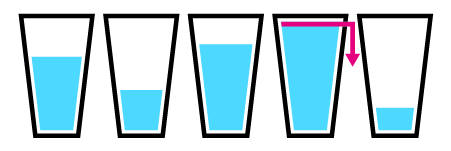

PASSIVE BALANCING

Dissipates a small amount of power (usually 1/10 Amp or less) when a cell reaches a critically high level.

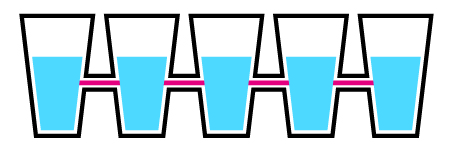

IMPACTIV BALANCING

Transfers current (power) from highest cells to lowest cells to keep all cells equal.

IMPACTIV balancing kicks in any time that a single cell’s voltage varies from the rest of the pack. This can be a higher voltage (top-balancing during charge) or a low cell (bottom balancing, during discharge). A special extra boost is applied if a cell’s voltage reaches 3.55V. Balancing is performed at up to 20 times the speed of passive balancing while maintaining a much higher efficiency and adding up to 30% to your battery life.

EFFICIENCY

Efficiency is the name of the game. Coming from an off-grid way of life, we breathe efficiency. We have designed our batteries to be unbelievably efficient from every possible aspect.

COST EFFICIENCY

ARK Battery has the lowest cost per lifetime KWH on the market!

SPACE EFFICIENCY

Our space-efficiency rule is simple; “Up instead of out.” All of our larger batteries have layered cells to maintain a small battery footprint in your utility room. If your project requires multiple batteries, our heavy-duty steel cased Gold Series batteries can be double and even triple stacked, while our state of the art modular series can be stacked up to 8 high.

CELL TYPE EFFICIENCY

We use prismatic cells in all our batteries to improve overall efficiency. Our prismatic cell batteries have fewer connections, lower resistance and use less space than cylindrical cell counterparts.

INSTALLATION EFFICIENCY

ARK Batteries are designed by installers for installers. We have implemented features such as casters, Anderson connectors and bluetooth monitoring for an easy and time-effective installation process.

BALANCING EFFICIENCY

We use a balancing system called impact balancing that channels power back and forth between cells as needed. Traditional balancing systems dissipate (waste) power from cells with the highest voltage.

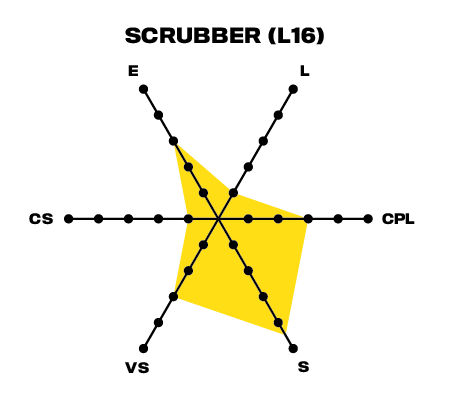

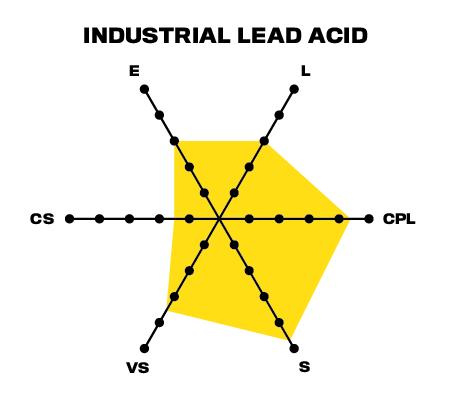

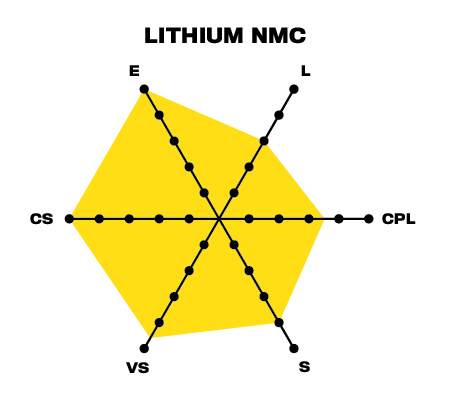

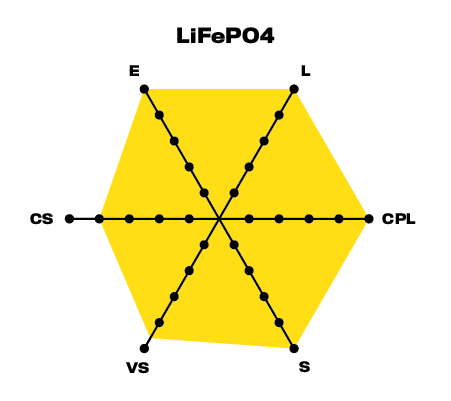

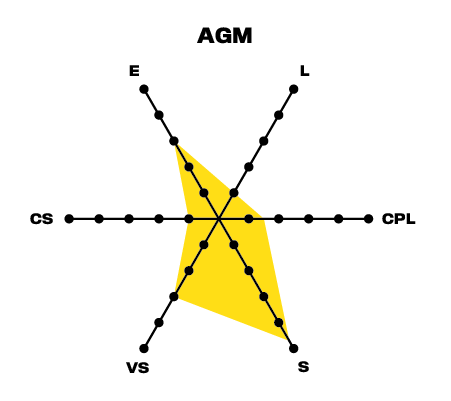

BATTERY COMPARISONS

This simple, yet thorough comparison of different battery types allows you to see at a glance which battery presents the best value. Comparisons are based on ratings from U.S. Battery, Full River Battery and Systems-Sunlight, respectively.

All calculations are based on cycling to 50% capacity retention.

Efficiency 5.0
Longevity 5.0
Cost Per Lifetime KWH 5.0
Safety 5.0
Voltage Stability 4.8
Charge Speed 4.0
Efficiency 5.0
Longevity 3.0
Cost Per Lifetime KWH 3.5
Safety 4.0
Voltage Stability 4.5
Charge Speed 5.0
Efficiency 3.0
Longevity 3.0
Cost Per Lifetime KWH 4.3
Safety 4.8
Voltage Stability 3.5
Charge Speed 1.5
Efficiency 3.0
Longevity 1.0
Cost Per Lifetime KWH 3.0
Safety 4.5
Voltage Stability 3.0
Charge Speed 1.0
Efficiency 3.0
Longevity 1.0
Cost Per Lifetime KWH 1.5
Safety 4.8
Voltage Stability 3.0
Charge Speed 1.0

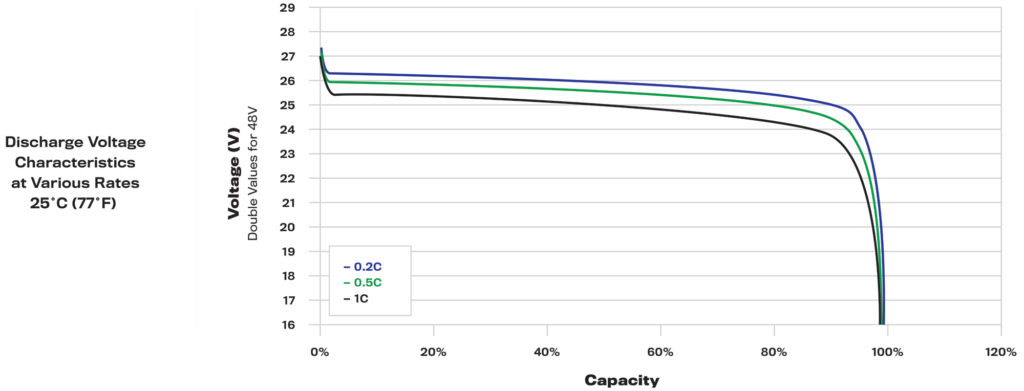

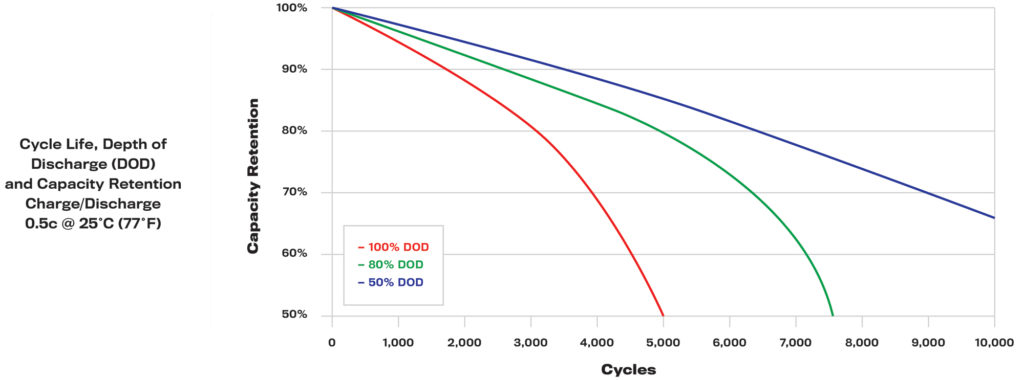

BATTERY CHARACTERISTICS

(Click Images to Expand)
